The Alberta Buck - Ethereum Implementation (DRAFT v0.9)

ERC-721 is the strongest first choice:

• Each BUCK_CREDIT is genuinely unique (specific asset, depreciation curve, insured value, premium schedule). This is precisely what ERC-721 models.
• The ERC721Enumerable extension provides tokenOfOwnerByIndex(), required for BUCK.mint() to aggregate all credits in an account.
• Custom extensions for dual-role access (owner activates, insurer updates) and deterministic valuation are straightforward.
• Widest tooling support, most audited implementations, lowest learning curve.

ERC-3643 is the strongest future candidate, especially if regulatory compliance (KYC, transfer restrictions, identity registry) becomes a deployment requirement. Its agent-role system maps naturally to the insurer/client relationship. However, its dependency chain (ONCHAINID, compliance modules, claim topics) adds significant complexity that is better deferred.

ERC-1155 is attractive if standardized credit "classes" emerge (e.g., all Calgary residential properties with the same depreciation model), allowing semi-fungible batching. For the initial system where each credit is individually appraised, the fungibility benefit doesn't apply.

ERC-4626 is a poor fit for individual credits but may be useful for the InsurancePool (where mutual insurance shares are fungible vault interests).

Each BUCK_CREDIT token is an ERC721Enumerable whose per-token CreditParams struct (src/BuckCredit.sol) carries all the insurer's current offer and the client's activation state. All monetary values are 18-decimal BUCK-equivalent units. Fields group naturally into three zones of mutability:

• Immutable at mint: insurer (the vendor address that may update this token), assetClass, createdAt.
• Insurer-mutable via updateCredit: faceValue, depreciationFloor, depType, depRate, depStartAt, premiumRate, lastUpdated.
• Client-mutable via activate: activatedValue (<= faceValue), lastActivatedAt.

DepreciationType is one of NONE (land, gold), LINEAR (constant annual reduction), or DECLINING_BALANCE (percentage of remaining value). Three events – CreditCreated, CreditUpdated, CreditActivated – record every state change. The per-token insurer field lets a single deployment host many insurers; assetClass cannot be reclassified after mint.

Depreciation is computed deterministically from the NFT's on-chain parameters in currentValue(tokenId) – a pure view with no oracle input, gas-free to query. The model branches on depType:

• NONE: currentValue is the activated face value, unchanged.
• LINEAR: loss accrues at depRate basis points per year on the depreciable portion (faceValue - floor), clamped at the depreciationFloor.
• DECLINING_BALANCE: continuous-compounded version using an in-contract _expNeg (6th-order Taylor series, accurate to <0.01% for x < 3.0 – i.e. up to ~300% cumulative depreciation). A production deployment should swap in PRBMath.exp() or ABDKMath64x64 for wider-range precision.

In every case the activated portion depreciates proportionally: currentValue = depreciatedFace * activatedValue / faceValue.

The client executes (activates) their credit piecemeal through activate(tokenId, amount) – gated on ownerOf(tokenId) == msg.sender and capped at the token's faceValue. Activation increases the activatedValue and stamps lastActivatedAt; the premium for the newly activated amount is collected by BUCK.mint(), not here.

totalCurrentValue(account) walks ERC721Enumerable.tokenOfOwnerByIndex and sums currentValue(tokenId) across all tokens owned by account – this is the single call BUCK.mint() makes to compute the credit limit.

The activation model separates the decision to use credit from the act of minting BUCKs. A client can activate $200K of their $500K home credit today, and months later activate $100K more – possibly at a different premium rate if the insurer has updated the NFT in the interim.

The insurer can reappraise the asset, change depreciation parameters, and adjust premium schedules. These changes affect future credit limit computations, including already-activated amounts (since the depreciation function is computed from current parameters, not historical ones).

updateCredit(tokenId, newFaceValue, newDepreciationFloor, newDepType, newDepRate, newDepStartAt, newPremiumRate) is gated on msg.sender == credits[tokenId].insurer. If newFaceValue < activatedValue the contract caps activatedValue downward in the same call; assetClass and insurer are never changed.

Note that if the insurer reduces faceValue below the current activatedValue, the activated amount is capped downward. This could push the client's outstanding BUCK balance above their credit limit, triggering the default insurance mechanism described below.

The registry implements three on-chain verifications, all reducible to BN254 precompile calls:

1. PS signature verification at registration: e(sigma'_1, X + m * Y) = e(sigma'_2, g_2), where the verifier reconstructs the relation linearly in m via the binding NIZK in step 2. Costs ~147K gas (3-4 ecPairing pairs).
2. NIZK proof binding the rerandomized PS signature to the ElGamal ciphertext. A Schnorr-family sigma protocol with three response scalars and a Fiat-Shamir challenge bound to (sigma', E_new, pk_new, registrant_address). Costs ~30K gas of ecMul=/=ecAdd on top of the pairing check. Total registration cost is ~235K gas (one-time).
3. Chaum-Pedersen proof of re-encryption correctness at approve time. The recipient identity ciphertext E_bob and proof pi_CP = (e, s_1, s_2) arrive in approve() calldata; the registry reads E_alice from storage (anchoring the proof to the registered credential) and verifies via 3-4 ecMul + 3-4 ecAdd operations and a Fiat-Shamir reconstruction. Costs ~29K gas per counterparty pair.

src/IdentityRegistry.sol uses the BN254 helper library for all curve math. The shape of the interface is what matters for the rest of this document:

struct G1Point  { uint256 X; uint256 Y; }
struct G2Point  { uint256[2] X; uint256[2] Y; }

struct ElGamalCT { G1Point R; G1Point C; }      // (R, C) = (r*G, r*pk + M)
struct PSSig     { G1Point s1; G1Point s2; }    // rerandomized PS signature
struct PSPubKey  { G2Point X; G2Point Y; }      // issuer (X, Y) in G_2

struct RegistrationProof { uint256 e, s_m, s_r; G1Point A_ps, T_C, T_R; }
struct CPProof           { uint256 e, s1, s2;   G1Point T1, T2, T3;   }

function register(address issuer, G1Point pk, ElGamalCT E, PSSig sigma, RegistrationProof proof);

// Bind a (pk, E_addr) Identity to a deployed contract address (target.code.length > 0).
// First binder wins for pre-existing contracts; for atomic deploy+bind use
// BuckAwareDeployer.deployAndBind.  isPublicIdentity_=true means the operator
// has chosen to publicly disclose m off-chain.
function bindContract(address target, G1Point pk, ElGamalCT E, bool isPublicIdentity_);

function trustIssuer(address issuer, PSPubKey ipk);         // governance
function verifyApprove(address sender, address spender,
                       ElGamalCT E_bob, CPProof pi) view returns (bool);

Design notes on the surface:

• Per-address state is pk, E_addr ((R,C) ciphertext of the identity point M), isVerified, isPublicIdentity, and issuerOf – all public-readable mappings.
• register runs three checks in order: (1) recompute the Fiat-Shamir challenge with msg.sender binding, (2) verify the Schnorr-family NIZK in G_1, (3) verify the PS pairing relation in G_2. An already registered / untrusted issuer guard precedes them. Total cost ~235K gas (one-time per address).
• bindContract is the only post-registration mutator and is permissioned by the deployment pattern, not by governance: any caller may bind any yet-unbound deployed contract. The intended discipline is operator OPSEC – either the operator is the contract's deployer and uses BuckAwareDeployer.deployAndBind for atomic deploy+bind (no front-running window), or the operator races to bind a pre-existing contract before any other party. Once bound, the binding is immutable.
• verifyApprove reads E_alice from storage so the caller cannot substitute a fake credential; the CPProof structure carries T1/T2/T3 because the transcript binds T1 and T2 separately (only T3 is recoverable from the verification equations).
• The RegistrationProof carries the PS-side commitment A_ps = m_tilde * sigma'_1 alongside the two ElGamal-side commitments T_C, T_R – A_ps is indispensable for the pairing-product check and cannot be reconstructed from the other responses.
• Governance hooks round out the surface: revokeIssuer, transferGovernance. Revocation does not un-register existing accounts; they were verified once at registration and are never re-verified.

DeFi infrastructure – AMM pools, vaults, oracles, the Notes pool – cannot generate Chaum-Pedersen proofs at approve time because the contract has no private key. Such contracts are bound with bindContract(target, pk, E, isPublicIdentity_=true) – the binding has the same (pk, E_addr) shape as a self-registered EOA, plus the isPublicIdentity flag that records the operator's commitment to publicly disclose m off-chain. Counterparties of a Public-Identity contract still call the identity-bound approve, but the bilateral receipt-fragment check on the contract side is satisfied by the deterministic _identityHash rather than a per-counterparty CP receipt (see the next section). Public-Identity contracts forfeit content privacy: their identity \( M \) is openable on subpoena via the operator's off-chain attestation, but they retain unforgeability and the audit trail.

A second, deferred mode binds a contract under an Encrypted Identity (isPublicIdentity_=false). This is intended for BUCK-aware contracts where the operator runs an off-chain pre-approval flow per counterparty (decrypting each user's E_user to attest that the contract is a willing counterparty), and ships the resulting CP material on-chain so per-user approve calls can succeed without divulging the contract's m. The bindContract surface supports it; no production contract uses it yet.

trustedIssuers is the only governance-controlled trust anchor in the system. Adding a new issuer admits a new origin of registrable identities; removing one stops new registrations under that issuer (existing registrations are unaffected – they were verified at registration time and are never re-verified). Epoch-based credential renewal, key revocation, and issuer rotation are described in the Identity: Epoch-Based Credential Renewal document.

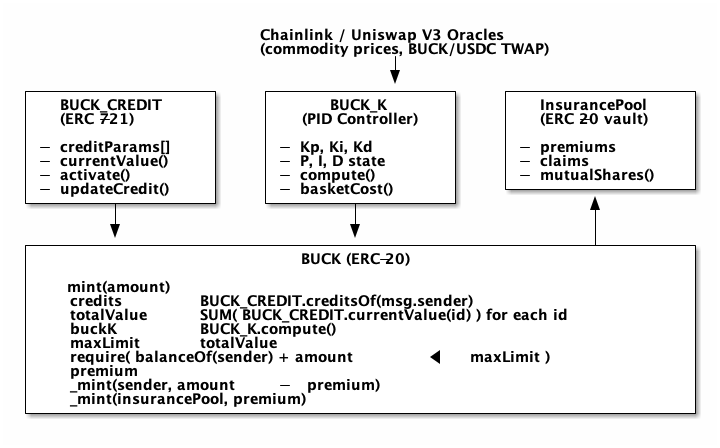

src/Buck.sol is constructed with (buckCredit, buckK, identity, insurancePool). mint(amount) performs the seven-step sequence:

1. Require identity.isVerified(msg.sender).
2. Read creditValue = buckCredit.totalCurrentValue(msg.sender).
3. Read k = buckK.currentBuckK() (Phase-0 static getter or eventual PID compute()).
4. maxLimit = creditValue * k / 1e18; the stored per-account storedLimit ratchets upward only.
5. Refuse if balanceOf(sender) + amount > storedLimit.
6. Compute the default-insurance premium (see below).
7. _mint(sender, amount - premium), _mint(insurancePool, premium), emit Minted(account, amount, premium, creditValue, buckKValue, newLimit).

A symmetric burn(amount) just calls _burn(msg.sender, amount) for repayment.

The shipped signature is

approve(address spender, uint256 amount, IdentityRegistry.ElGamalCT E_bob, IdentityRegistry.CPProof pi_CP).

The parameterless ERC-20 approve(address, uint256) reverts with BUCK: use identity-bound approve – the identity-bound form is mandatory. Both sender and spender must be isVerified (i.e. registered EOAs or contracts bound via bindContract). Critically, the CP proof is always required regardless of the spender's Identity flavor: even when the spender is a Public-Identity contract, the ERC-20 allowance write must be accompanied by a CP proof. On success the receipt fragment keccak256(abi.encode(E_bob.R.X, E_bob.R.Y, E_bob.C.X, E_bob.C.Y)) is stored at _receiptFragments[sender][spender] and the ERC-20 allowance is written via _approve(sender, spender, amount).

The full rationale for the always-CP rule – consent vs. execution, BN254-key engagement, per-pair freshness, uniform audit semantics, and defense against future identity rotation – is laid out in Why approve Is Always CP-Bound in the BUCK Identity document.

For Public-Identity spenders the operator constructs E_bob and pi_CP by re-encrypting against the spender's published m; for Encrypted-Identity spenders the operator must obtain E_spender and pre-approval material from the spender's wallet (the standard EOA-to-EOA flow).

The approve call costs roughly 29K (CP verify) + 46K (standard ERC-20 approve) + 22K (receipt SSTORE) = ~97K gas, paid once per (sender, spender) pair. Subsequent transfers between the same counterparties incur only the bilateral check and the receipt event (~5K gas of additional work above a baseline ERC-20 transfer).

Both transfer(to, amount) and transferFrom(from, to, amount) route through _identityCheckedTransfer, which enforces:

• isVerified(from) and isVerified(to) – both parties must carry an Identity binding (EOA via register, contract via bindContract).
• The to side: try _receiptFragments[from][to]; if zero, fall back to _identityHash(to) only if isPublicIdentity(from) || isPublicIdentity(to) – otherwise revert with BUCK: missing identity receipt. EOA-to-EOA Encrypted transfers MUST have a prior approve-time CP receipt; transfers where at least one party is a Public-Identity contract are allowed to use the deterministic fallback.
• The from side is best-effort: try the mirrored fragment _receiptFragments[to][from] for a reciprocal approve, otherwise fall back unconditionally to _identityHash(from). The receipt still records the asymmetric attestation – auditors reading the event know which side was CP-bound vs. registry-derived.

After the underlying _transfer settles, BuckTransferReceipt(from, to, amount, fromHash, toHash) is emitted. _identityHash(account) is keccak256(abi.encode(pk.X, pk.Y, R.X, R.Y, C.X, C.Y)) over the account's stored public key and ElGamal ciphertext – identical for the same account across every transfer it participates in.

The BuckTransferReceipt event is the auditable trail: fromCipherHash and toCipherHash are keccak256 commitments over the corresponding ElGamal ciphertexts. Counterparties can match a receipt to their off-chain copies of \( E_{alice}, E_{bob} \) by recomputing the hash; observers without the underlying ciphertexts learn nothing beyond the fact of a transfer.

BUCK carries a continuous on-chain demurrage accrual to drive a perpetual Jubilee schedule. All balance accounting is in raw units; the displayed balanceOf(a) subtracts a per-account feeOwing(a) = raw_balance(a) * (cumIndexNow - _indexAtLastTouch[a]) / SCALE. cumIndex grows linearly at BASE_RATE_PER_SEC * (now - genesis). Two transfer flavours coexist:

• Deducting (default ERC-20 path): the sender's accumulated fee is burned to the Jubilee recipient's index slot; sender's _indexAtLastTouch resets to cumIndex; the recipient's index is weighted-merged toward cumIndex so its prior fee debt is preserved.
• Carrying (transferCarrying(to, amount)): no fee burn. amount raw units move atomically with the sender's accrued demurrage age – the recipient's index becomes the amount-weighted average of its old index and the sender's _indexAtLastTouch: _indexAtLastTouch[to] = (br * _indexAtLastTouch[to] + amount * idxFrom) / (br + amount). The sender's index is unchanged; sender keeps the residual age on its remaining balance.

transferCarrying is the entry point Notes.spend and Notes.spendACP call when paying out a redeemed face value: it is the reason a recipient absorbs the pool's average demurrage age (the anonymity cost – and upside, for anyone who held a note longer than the pool average) rather than a discontinuous spike of settled fee. The Jubilee accumulates fee burns into a single sink whose own _indexAtLastTouch is itself weighted-merged so disbursements remain age-correct.

The premium scales with utilization: the closer the account's outstanding BUCKs approach the credit limit, the more expensive each additional BUCK becomes. This mirrors the architecture document's description of Parametric Default Insurance.

The shipped curve is quadratic in utilization: premium_rate = BASE_RATE + utilization^2 * SCALE_RATE, with BASE_RATE = 50bp (0.50%) and SCALE_RATE = 450bp (4.50% additional at 100% utilization). Concretely: ~0.5% at 0% utilization, ~1.75% at 50%, ~4.55% at 90%; 100% is unreachable because the limit check itself rejects. The _computePremium(account, mintAmount, limit) helper computes utilization on the post-mint balance and returns the BUCK amount due to the insurance pool.

The quadratic scaling creates a natural disincentive against over-leveraging. A client using 50% of their credit pays roughly 1.75% of each minted BUCK to the insurance pool; at 90% they pay 4.55%. The insurance pool accumulates these premiums to cover defaults (accounts where asset depreciation or BUCK_K changes push outstanding BUCKs above the credit limit).

When BUCK trades below basket value (positive error), BUCK_K increases, expanding everyone's credit limit. This floods the market with cheap BUCKs, which arbitrageurs buy to acquire underpriced commodities, driving the BUCK price back up. The converse reduces BUCK_K when BUCKs are overvalued.

src/BuckKController.sol is a straight Solidity port of the JavaScript PID controller in ownercredit, with 18-decimal fixed-point arithmetic and BN254-friendly types. The shipped shape is:

• Configuration: int256 Kp, Ki, Kd (gains), uint256 dT (minimum update interval), uint256 buckKMin, buckKMax (output clamps), buckUsdcPool, twapInterval, governance.
• State: int256 P, I, D, uint256 lastUpdate, uint256 buckK (output, 1e18 = neutral). basket[] is an array of BasketComponent { AggregatorV3Interface feed; uint256 weight; uint8 feedDecimals; }.

• Entry point: compute() returns (uint256). If now - lastUpdate < dT it returns the cached buckK without state change. Otherwise it reads basketCost (Chainlink-weighted setpoint), buckPrice (Uniswap V3 TWAP, process variable), runs one PID cycle ~rawOutput = 1e18 + newP*Kp

  • newI*Ki + newD*Kd~ (each term divided by 1e18), clamps to [buckKMin, buckKMax] with

  anti-windup on the integral term, writes the new state, and emits BuckKUpdated.

• View: currentBuckK() view returns (uint256) – the Buck contract calls this for non-mutating reads.
• Governance: setGains, setDT, addBasketComponent.

The TWAP price helper _getBuckPrice() uses Uniswap's OracleLibrary.consult(pool, twapInterval) to convert a tickCumulatives delta into an 18-decimal price; omitted here because it is mechanical Uniswap V3 boilerplate. The basket helper sums price * weight with per-feed decimal normalisation.

The PID gains determine how aggressively BUCK_K responds to price deviations:

Initial gains should be conservative (high Kd relative to Kp, low Ki) to favor stability over responsiveness. The dT parameter (minimum update interval) acts as an additional dampening mechanism – a 1-hour dT means BUCK_K changes at most once per hour regardless of how many mints occur, preventing high-frequency oscillation.

The TWAP interval (twapInterval) provides manipulation resistance: a 30-minute TWAP means an attacker would need to sustain a price manipulation for 30 minutes to meaningfully affect BUCK_K – a prohibitively expensive proposition on a liquid pool.

The current implementation uses governance-set fixed gains. A future enhancement could implement on-chain gain scheduling where Kp, Ki, and Kd are adjusted based on observed error dynamics:

• Low volatility regime (error variance below threshold): reduce Kp, increase Ki for tighter long-term tracking.
• High volatility regime (error variance above threshold): increase Kp and Kd for faster response, reduce Ki to prevent windup.
• Regime detection: maintain a rolling variance of the error signal over a window of N updates.

This maps directly to the PIDController.reset() pattern in the JavaScript implementation, where gains can be hot-swapped without spiking the derivative term.

Phase-7-bis ships circuits/mint_batch.circom, a parameterised batch-mint circuit that subsumes the per-leaf on-chain Poseidon insertion of Phase 7. One compile per pinned N (recommended {16, 128, 1024}); each pin produces its own MintGroth16Verifier_N*.sol and registers in mintVerifiers[N] on Notes. The public-signals arity is 5 regardless of N.

Constraints: N Poseidon-5 opening checks, Num2Bits(128) range bounds on each v[i] and on totalFace (closing the field-overflow attack), one sum check (totalFace === sum v[i]), N x TREE_DEPTH Poseidon-2 hashes implementing the rolling filled-subtrees insertion from oldRoot to newRoot, and one keccak-style hash check binding cmBatchHash to the per-leaf commitments. Total constraints work out to ~6K R1CS per leaf (~1.7K opening + ~4.3K insertion); see alberta-buck-notes-rollup-mint.org for per-N R1CS / PTAU sizing. scripts/snark/setup.sh now runs one phase-2 setup per pinned N, exporting src/MintGroth16Verifier_N*.sol for each. src/SpendGroth16Verifier.sol is unchanged from Phase 7.

interface IMintGroth16 {
    function verifyProof(
        uint256[2]    calldata a,
        uint256[2][2] calldata b,
        uint256[2]    calldata c,
        uint256[3]    calldata pubSignals   // [totalFace, cm[0], cm[1]]
    ) external view returns (bool);
}

The trusted-setup contributions in setup.sh use a fixed dev-only entropy string. A production deployment must run a real multi-party ceremony; the same script is the scaffolding.

circuits/spend.circom proves the redemption of a single B-shape note under an on-chain Merkle root. Public inputs are [noteRoot, nullifier, face, recipient, chainId]; private witness is (flavor, v, rho, idHash, predicate, pathElements[20], pathIndices[20]). The circuit enforces five constraint groups:

• (R) Num2Bits(128) on face and on v.
• (C) cm === Poseidon(5)(flavor, v, rho, idHash, predicate).
• (M) Tornado-style Merkle inclusion of cm under noteRoot at path (pathElements, pathIndices): a chain of Poseidon(2) hashes with Switcher selectors ordering the left/right inputs at each level.
• (N) B-shape nullifier nullifier === Poseidon(3)(rho, idHash, 4242) – the constant tag 4242 domain-separates the B-path; the shipped spend_a.circom V2 uses tag 4243 to keep A and B nullifiers structurally disjoint.
• (B) Ghost bind face * 1 === v * 1 and a quadratic anchor x*x guarantees the prover committed to the value actually being redeemed (not an arbitrary smaller face).

snarkjs compiles the circuit to roughly 12,000 R1CS constraints; the 2^15 pot is shared with mint. The on-chain SpendGroth16Verifier accepts a 5-element pubSignals tuple; the SpendVerifierAdapter presents the narrower ISpendVerifier.verifySpend(proof, root, nullifier, face, recipient, chainId) to the Notes contract.

Notes is decoupled from the specific SNARK toolchain via two narrow interfaces:

interface IMintVerifier {
    function verifyMint(bytes proof, uint256 totalFace,
                        uint256[] commitments, address issuer) external view returns (bool);
}

interface ISpendVerifier {
    function verifySpend(bytes proof, uint256 root, uint256 nullifier,
                         uint256 face, address recipient, uint256 chainId)
        external view returns (bool);
}

Two implementations of each interface ship:

• Stubs (StubMintVerifier, StubSpendVerifier): governance-controlled booleans. Used in deployment bootstraps and unit tests that exercise state transitions unrelated to the SNARK itself.
• Adapters (MintVerifierAdapter, SpendVerifierAdapter): decode proof as abi.encode(uint256[2], uint256[2][2], uint256[2]), build the public-signals tuple (5 entries for mint – [oldRoot, newRoot, nextLeafIndex, totalFace, cmBatchHash] – and 5 entries for spend), and forward to the snarkjs-generated MintGroth16Verifier_N* / SpendGroth16Verifier. The mint adapter is per-N: mintVerifiers is a mapping(uint256 => IMintVerifier)= keyed on cms.length, with one verifier registered per pinned batch size (recommended {16, 128, 1024}).

Swapping either verifier is a single governance call (Notes.setMintVerifier(N, address) / Notes.setSpendVerifier(address)); the Notes contract's own storage and event surface are invariant.

src/Notes.sol is constructed with (buck, mintVerifierRegistry, spendVerifier, governance). Its state is intentionally lean – the per-leaf Poseidon insertion math that Phase 7 had on chain now lives inside the mint SNARK, and the contract just records the SNARK-attested newRoot:

• Verifier handles: per-N mintVerifiers[N] (governance-swappable per pinned N), ISpendVerifier spendVerifier (governance-swappable singleton). No on-chain Poseidon precompile is required for mint – it remains relevant for legacy spend- side off-chain tree reconstruction tools, but the contract no longer calls it.
• Audit and double-spend state: mapping nullifiers, uint256 noteFaceSum.
• Tree state: uint32 nextLeafIndex and uint256[ROOT_HISTORY_SIZE=30] roots with uint8 currentRootIndex selecting the live root. filledSubtrees, zeros[], and commitmentExists from Phase 7 are retired – the rolling tree state lives in the wallets' local mirrors and inside the SNARK; duplicate commitments are economically self-punishing via the deterministic nullifier Poseidon3(rho, idHash, 4242) (one spend nullifies every copy of the same opening; Alice loses any BUCK she paid to mint duplicates).

mint(proof, oldRoot, newRoot, nextLeafIndex, totalFace, cms) asserts cms.length > 0, checks oldRoot == roots[currentRootIndex] and nextLeafIndex == self.nextLeafIndex (stale-state guards), recomputes cmBatchHash = keccak256(abi.encodePacked(cms)), dispatches to mintVerifiers[cms.length].verifyMint(proof, oldRoot, newRoot, nextLeafIndex, totalFace, cmBatchHash), pulls totalFace BUCK via transferFrom(caller, this, totalFace), writes newRoot into the ring buffer at (currentRootIndex + 1) % ROOT_HISTORY_SIZE, advances nextLeafIndex by cms.length, bumps noteFaceSum by totalFace, and emits a single Minted(issuer, totalFace, startIndex, count, newRoot) event. Per-leaf Appended events from Phase 7 are gone: the commitments themselves live in the transaction calldata for off-chain tree replayers and indexers to read.

spend(proof, root, nullifier, face, recipient) is unchanged from Phase 7: requires recipient ! 0=, face > 0, that root is still in the recent-roots window (isAcceptedRoot(root)), and that nullifier has not been seen. It forwards (proof, root, nullifier, face, recipient, block.chainid) to spendVerifier.verifySpend, marks the nullifier burned and decrements noteFaceSum before calling IBuckCarrying(address(buck)).transferCarrying(recipient, face) – the carrying path moves the pool's average demurrage age to the recipient atomically with the face value. A Spent(nullifier, face, recipient) event closes the spend.

Phase 7-bis closes the same loop as Phase 7 but at N-independent on-chain cost: credit-backed BUCKs in via mint (~380K + ~500 gas/leaf calldata) -> opaque commitments fold into the rolling root via the SNARK -> spend redeems any committed commitment against any recent root with a fresh nullifier, paying the recipient via transferCarrying so the SNARK's face === v invariant is preserved at the ERC-20 boundary. The pivot is documented in alberta-buck-notes-rollup-mint.org.

Before Alice can interact with BUCK at all, she must hold a verified identity credential:

1. KYC ceremony (off-chain): a trusted issuer (the Alberta government, ATB Financial, etc.) verifies Alice's documents and signs her identity scalar \( m = H(identity\_data) \) with their PS key, producing \( \sigma = (\sigma_1, \sigma_2) \). Alice stores \( (m, \sigma) \) in her wallet.
2. Derivation (off-chain): Alice's wallet rerandomizes \( \sigma \) into \( \sigma' \), generates a fresh identity key pair \( (sk_{alice}, pk_{alice}) \), encrypts her identity point \( M = m \cdot G \) under \( pk_{alice} \), and produces a NIZK proof \( \pi \) binding \( \sigma' \) to that ciphertext.
3. On-chain registration: Alice calls IdentityRegistry.register(issuer, pk_alice, E_alice, sigma', pi). The contract verifies \( \pi \) and the PS pairing relation via the BN254 precompiles (235K gas, paid once for the lifetime of this Ethereum address). After this call, ~isVerified[alice] == true and issuerOf[alice] == issuer.

Alice repeats steps 2-3 for every Ethereum account she controls; the issuer never sees those accounts.

Alice calls BUCK.mint(50000e18):

1. The contract first checks identity.isVerified(alice) == true.
2. buckCredit.totalCurrentValue(alice) returns 341,000e18.
3. buckK.currentBuckK() returns the current stabilization factor. Phase 0: this is just the static value the governance multisig last wrote. Eventual PID build: the controller fetches oracles – e.g. commodity basket at 1.02 USDC, BUCK at 0.99 USDC, error +0.03 -> BUCK_K = 1.015.
4. maxLimit = 341,000 * BUCK_K. Assume BUCK_K = 1.015, so maxLimit = 346,115.
5. Alice's current balance is 280,000 BUCKs. After mint: 330,000 < 346,115. OK.

6. Utilization after mint: 330,000 / 346,115 = 95.3%.

   • Premium rate: 0.50% + (0.953^2 * 4.50%) = 4.59%.
   • Premium: 50,000 * 4.59% = 2,295 BUCKs to insurance pool.
7. Alice receives 47,705 BUCKs. Insurance pool receives 2,295 BUCKs.

Alice wants to pay Bob 10,000 BUCKs through the same router pattern most ERC-20 flows use (approve + transferFrom). Bob is also registered.

1. Alice's wallet reads Bob's pk_bob from IdentityRegistry.
2. Off-chain, Alice's wallet decrypts E_alice (it knows sk_alice), recovers \( M \), and re-encrypts under \( pk_{bob} \) with fresh randomness \( r_b \): \( E_{bob} = (r_b \cdot G,\ r_b \cdot pk_{bob} + M) \).
3. The wallet produces a Chaum-Pedersen NIZK proof \( \pi_{CP} = (e, s_1, s_2) \) that E_bob encrypts the same \( M \) registered in E_alice. The Fiat-Shamir challenge binds msg.sender = alice, spender = bob, and block.chainid.

4. Alice calls BUCK.approve(bob, 10000e18, E_bob, pi_CP). The contract:

   • checks both parties are verified;
   • asks IdentityRegistry.verifyApprove(alice, bob, E_bob, pi_CP) – the registry reads E_alice from its own storage (so Alice can't substitute a fake credential) and runs the CP check (~29K gas);
   • stores _receiptFragments[alice][bob] = keccak256(E_bob);
   • records the standard ERC-20 allowance.
5. Off-chain, Alice's Holochain hApp delivers the matching identity_data and \( E_{bob} \) ciphertext to Bob's hApp. Bob's wallet decrypts to recover \( M' \) and asserts \( H(identity\_data) \cdot G \stackrel{?}{=} M' \) – the two-channel binding from the Identity document.

Bob (or a contract Bob authorized) calls BUCK.transferFrom(alice, bob, 10000e18):

1. _spendAllowance(alice, bob, 10000e18) debits the allowance Alice set above.
2. _identityCheckedTransfer(alice, bob, 10000e18) verifies both parties are still verified and that _receiptFragments[alice][bob] ! 0= (Alice did supply a CP-bound receipt at approve time).
3. Tokens transfer.
4. BuckTransferReceipt(alice, bob, 10000e18, fromHash, toHash) is emitted, with fromHash and toHash being keccak256 commitments over the corresponding ciphertexts. An auditor with subpoena power over either Alice or Bob can recover the underlying identities; an outside observer learns only that addresses alice and bob exchanged 10,000 BUCKs.

Separately, Alice wants to move some of her BUCKs off the public-ledger transfer path into private notes. Her wallet picks flavour A2 and values [100 BUCK, 25 BUCK] (totalFace = 125 BUCK), draws fresh rho[i] and idHash[i] randomness, and – since the deployment pins N \in {16, 128, 1024} – pads the live pair with 14 dummy openings whose v_i = 0 so the batch lands on the smallest pinned circuit (N* = 16). The wallet snapshots (oldRoot, nextLeafIndex) from chain, derives the depth-20 sibling paths for each of the 16 leaves in submission order, and runs snarkjs groth16 fullProve against build/snark/mint_batch_N16/mint.wasm and mint_final.zkey. The proof triple (pA, pB, pC) is abi-encoded as (uint256[2], uint256[2][2], uint256[2]) into proofBytes.

On-chain, Alice makes two calls:

1. BUCK.approve(notes, 125e18, E_notes, pi_CP_notes) – standard identity-aware approve. The Notes contract was bound at deployment under a Public Identity (bindContract(notes, pk_notes, E_notes, true) from script/Deploy.s.sol), so Alice's wallet constructs E_notes by re-encrypting against the Notes pool's published m. The CP proof itself is still required – the always-CP rule (see Why approve Is Always CP-Bound) applies regardless of spender flavour – and the on-chain receipt fragment Alice's operator stores is Alice's own E_notes re-encryption, openable on subpoena to show "Alice authorised the Notes pool to draw 125 BUCK."
2. Notes.mint(proofBytes, oldRoot, newRoot, nextLeafIndex, 125e18, [cm[0], ..., cm[15]]) – the MintVerifierAdapter dispatches by cms.length=16 to mintVerifiers[16] and forwards to the N=16 Groth16 verifier with public signals [oldRoot, newRoot, nextLeafIndex, 125e18, keccak256(cms)]. On success, 125 BUCK moves from Alice to Notes, roots[] advances to the SNARK-attested newRoot, nextLeafIndex advances by 16, and noteFaceSum + 125e18=. Alice's wallet keeps the live openings (flavor, v, rho, idHash, predicate for the two real notes) privately – those are the NoteOpening records she will need to spend. The 14 dummy openings are discarded.

Later, the holder of one of Alice's notes – it could be Alice herself, or the bearer to whom she off-chain handed the opening – redeems cm[0] for 100 BUCK to address recipient:

1. The wallet reconstructs the Merkle path (pathElements[20], pathIndices[20]) for cm[0] by replaying the Minted event log and pulling the calldata cms[] out of each batch mint transaction (or from a locally-cached tree).
2. snarkjs groth16 fullProve against build/snark/spend/spend.wasm and spend_final.zkey produces a proof binding [noteRoot, nullifier, face, recipient, chainId] = [currentRoot, Poseidon(rho, idHash, 4242), 100e18, recipient, 1] to the witness opening.
3. Notes.spend(proofBytes, currentRoot, nullifier, 100e18, recipient) – the contract checks the root is still in the recent-roots window, rejects a previously-seen nullifier, runs the adapter (~360K gas total), marks the nullifier burned, decrements noteFaceSum, and calls BUCK.transferCarrying(recipient, 100e18). The recipient receives the full 100 BUCK and an amount-weighted share of the pool's average demurrage age.

Later, HomeCo reappraises the structure at $280K (updated faceValue). Alice's credit limit drops. If her outstanding balance exceeds the new limit, the default insurance mechanism activates (or the Jubilee fund eventually releases the lien), and she can no longer mint BUCKs.

• TWAP resistance: The BUCK/USDC price uses a Uniswap V3 TWAP (30+ minutes), requiring sustained capital commitment to manipulate.
• Chainlink feeds: Commodity prices from Chainlink's decentralized oracle network, with built-in deviation thresholds and heartbeat checks.
• Staleness checks: _getBasketCost() should verify updatedAt is within an acceptable window (e.g., 1 hour) and revert if stale.

A malicious user could create many tiny BUCK_CREDITs to make totalCurrentValue() gas-prohibitive. Mitigations:

• Minimum face value for BUCK_CREDIT creation.
• Cap on credits per account (e.g., 20).
• Off-chain aggregation with Merkle proof (advanced).

The insurer can reduce faceValue at any time, potentially pushing accounts into default. This is by design – it reflects real-world reappraisal risk. Mitigations:

• Insurance pool covers default events.
• Multiple competing insurers provide market discipline.
• Governance can blacklist abusive insurers.
• Time-locks on insurer updates (e.g., 7-day delay for reductions > 20%).

Standard OpenZeppelin ReentrancyGuard on mint() and activate(). All state changes occur before external calls.

If standardized credit classes emerge (e.g., "Calgary residential, HomeCo, LINEAR 200bp"), multiple properties in the same class could share a token ID with individual amounts. Benefits:

• Batch operations (safeBatchTransferFrom) for portfolio management.
• Reduced gas for accounts with many same-class credits.
• Natural fit for insurance tranches within a single credit.

Challenges: per-token depreciation start dates require additional state mapping, partially negating the fungibility benefit.

For production deployment under regulatory oversight:

• ONCHAINID: Native identity registry for KYC/AML compliance.
• Compliance modules: Programmable transfer restrictions (e.g., credits can only transfer to verified Alberta residents).
• Agent roles: Insurer as agent with granular permissions (update, freeze, force-transfer).
• Recovery: Lost-key recovery through identity verification.

This is the likely production standard if Alberta implements BUCK under provincial regulation.

While a poor fit for BUCK_CREDIT itself, ERC-4626 is well-suited for the InsurancePool:

• Premium deposits as deposit() / mutual insurance shares as shares.
• convertToAssets() / convertToShares() for transparent share pricing.
• Standard DeFi composability (yield aggregators, lending protocols).

The contracts are EVM-compatible and can deploy on Arbitrum, Optimism, Base, or Polygon with minimal changes. Cross-chain BUCK transfers via canonical bridges or LayerZero/Axelar would enable multi-chain liquidity while maintaining a single BUCK_K oracle on the settlement layer.

Current forge suite: 202 unit tests pass (across 13 test suites); one BuckKControllerForkTest requires a live mainnet RPC and is skipped offline.

Two design memos drive the immediate path forward. Phase 7-bis (batch-mint) and Phase 8 V2 (A-spend) are both shipped; only Phase 9 (serialized B1 sub-notes) remains as an outstanding Notes deliverable. Both memos were reviewed for cryptographic correctness on 2026-04-24; both verdicts are sound, with one explicit operational trust assumption (K_fam destruction in serialized B1) that is symmetric to a pre-existing one (issuer-retained rho in single-note B1) and is documented in the Phase 9 wallet-UX requirement.

Tests are stratified by what they actually need from the EVM, so the cryptographic and accounting work can iterate without ever touching a network:

1. Local-EVM unit tests (default). Foundry's in-memory EVM ships the BN254 precompiles (ecAdd 0x06, ecMul 0x07, ecPairing 0x08) and all the EIP-2929 / cancun behavior we need. Every contract in this document – BUCK_CREDIT, BUCK, IdentityRegistry, the BN254 helper, the static BUCK_K – is fully exercisable without RPC, on a clean state, in milliseconds per test.
2. Pinned mainnet/Sepolia forks (only the eventual PID BUCK_K). When the production BuckKController ships and needs to read Chainlink price feeds and the Uniswap V3 BUCK/USDC TWAP, run the relevant tests with --fork-url ${RPC} --fork-block-number ${N}. Pinning the block number is the determinism knob: the EVM state at block N is immutable, and Foundry caches the RPC responses under ~/.foundry/cache/rpc/ – after the first run the suite is offline and bit-reproducible. vm.mockCall covers pathological oracle paths (stale feeds, manipulated TWAPs) without needing to find a block at which they actually occurred.
3. Differential parity with the Python reference. The cryptographic surface is described by an executable Python reference (see Off-Chain Wallet below). CI regenerates the canonical JSON test vectors from that reference and git diff --exit-code's them against committed copies; the Solidity tests load the same vectors via vm.readFile and assert equality. Any drift between the spec, the wallet, or the Solidity tells us immediately which of the three is wrong.

The deliberate exclusion: no vm.ffi shelling out to Python at test time. That trades determinism, speed, and CI portability for a coupling we don't need – the wallet emits vectors once, the Solidity reads them many times.

The off-chain components – KYC ceremony, credential derivation, Chaum-Pedersen proving, and (later) SNARK witness generation for Notes – are implemented as a Python package, alberta_buck.wallet, with a CLI front-end. Python is the natural choice: the existing references in Identity Example and Proofs are already Python, py_ecc ships a complete BN254 (alt_bn128) implementation matching Ethereum's precompiles, and the package is invoked the same way every other dev tool in this repo is (nix develop --command python3 -m alberta_buck.wallet ...).

The wallet has four jobs:

• Reference implementation of the cryptography in Identity, the place where the spec is ground-truthed.
• Test-vector emission: a CLI verb (wallet emit-vectors) writes a canonical JSON file under test/vectors/ containing the inputs and expected outputs of every on-chain proof check. Foundry tests load this file and assert agreement with the Solidity verifier.
• End-to-end developer surface: a CLI verb (wallet sign, wallet register, wallet approve) produces the calldata an end user's wallet would submit, so integration tests (and humans) can drive the contracts the same way a real wallet would.
• Simulated counterparties: alberta_buck.wallet.issuer models the off-chain government / institutional issuer (PS keypair, identity-record canonicalization, signed credential delivery, optional ElGamal-encrypted transmission to the applicant, in-memory revocation log). This is the entity the wallet's register verb effectively receives a credential from before rerandomizing and posting to IdentityRegistry. See Phase 2-A for the implementation status.

The wallet does not hold private keys for production users; it is a deterministic reference and a test driver. A production wallet would reuse the same primitives behind a different storage and UI.

Goal: Buck can be developed and tested against a minimal, deterministic surface for BuckCredit and BuckK. All real moving parts (depreciation curves, PID, oracles) are deferred.

• BuckKController.sol -> replace with BuckKControllerStatic.sol:

  • State: uint256 public buckK (18 decimals, default 1e18).
  • Functions: currentBuckK() view returns (uint256), compute() (no-op compat shim), setBuckK(uint256), transferGovernance(address) (both governance-only).
  • Drop all PID state, Chainlink basket, and Uniswap TWAP code. The full PID implementation documented above remains the design target – it slots back in once the identity layer is stable. The design-target BuckKController.sol also ships (unit-tested with mocked feeds); the live-oracle fork test is gated on RPC availability.
• BuckCredit.sol -> keep the existing implementation, but treat only one function as a load-bearing interface for Phase 0+: totalCurrentValue(address holder) external view returns (uint256). No depreciation rework, no insurer-flow churn.

Deliverables: passing Foundry tests that mint, set new BUCK_K values, and watch credit limits re-derive correctly.

Goal: a single Solidity library that wraps the three BN254 precompiles and exposes the typed operations the identity contracts need.

• src/crypto/BN254.sol with:

  • G1Point, G2Point structs and constants for g1, g2.
  • add(G1Point, G1Point) -> G1Point via ecAdd precompile (0x06).
  • mul(G1Point, uint256) -> G1Point via ecMul precompile (0x07).
  • pairingProd3(...) and pairingProd4(...) helpers via ecPairing precompile (0x08).
  • Pure-Solidity Fiat-Shamir helpers: fsRegistration(...) and fsChaumPedersen(...), each wrapping a keccak256 over the canonical encoding from the Identity document.
  • High-level checks: checkPSSignature, checkRegistrationNIZK, checkChaumPedersen.

Deliverables: differential tests against the Python reference in alberta-buck-identity-example.org (same curve, same encoding, same Fiat-Shamir transcript). nix develop --command python3 drives the reference; Foundry vm.ffi or pre-baked vector files feed the Solidity tests.

Goal: ship the on-chain trust anchor exactly as specified in the IdentityRegistry section.

• src/IdentityRegistry.sol implementing register, bindContract, verifyApprove, trustIssuer.
• All proofs verified using BN254 helpers from Phase 1.

• Tests:

  • End-to-end registration with the Python reference vectors (positive case + the four counter-examples from alberta-buck-identity-example.org).
  • register rejects untrusted issuers.
  • register rejects double-registration of the same address.
  • verifyApprove accepts a valid Chaum-Pedersen proof and rejects every documented tampered case (wrong message, wrong randomness, wrong public key, replayed challenge).
  • Gas measurements within ~15% of the published estimates (235K register / 29K verifyApprove).

Deliverables: deployable registry, passing test suite, documented gas measurements.

Goal: model the off-chain side of credential issuance – the entity an applicant submits identity documents to, which signs them with PS and (optionally) returns the credential ElGamal-encrypted to the applicant's public key. Without this layer the existing tests have no way to drive IdentityRegistry other than from inline ps_keygen + ps_sign calls in test fixtures, which collapses the issuer's role into the wallet's role and makes multi-issuer / rotation / revocation scenarios awkward.

The on-chain trust anchor is unchanged: IdentityRegistry.trustIssuer(addr, pk) keys the issuer's PS public key by Ethereum address and revokeIssuer(addr) clears it. This phase adds the matching off-chain entity – same PS keypair, same address, plus the issuance ceremony itself.

• alberta_buck/wallet/issuer.py:

  • Issuer dataclass: issuer_id (string label, e.g. "atb-financial-ca"), issuer_addr (Ethereum address used as the on-chain trust anchor), keypair (PS), simulated revocation set, in-memory issuance log.
  • Issuer.setup(issuer_id, issuer_addr, rng) class-method for deterministic test setup.
  • issue(identity_fields, applicant_addr, applicant_pk=None, rng) -> IssuedCredential: overwrites the issuer_id field in the submitted record (so applicants cannot smuggle a different issuer label into the canonical), canonicalizes, computes m, signs sigma, and – when applicant_pk is given – ElGamal-encrypts M = m*G under it for confidential delivery. The wallet decrypts on receipt to confirm M before rerandomizing sigma.
  • revoke(addr) / reset(addr) / issuance_log() / verify_credential(cred) helpers.
  • rerandomize_for_registration(cred, rng) – convenience wrapper for the wallet-side step that produces sigma' before calling IdentityRegistry.register.
• alberta_buck/test/test_issuer.py: 15 tests covering keygen determinism, single-credential round-trip, issuer_id overwrite invariant, ElGamal delivery decryption, revocation, multi-issuer non-cross-verification, and the full end-to-end pipeline (issue -> rerandomize -> ElGamal encrypt -> registration_prove -> registration_verify).
• Future: replace the inline ps_keygen calls in alberta_buck/wallet/vectors.py and the Foundry-side identity test vectors with Issuer.setup(...).issue(...) so the canonical JSON emitted to test/vectors/ reflects an actual issuance ceremony rather than a synthetic one. This is mechanical and can be done incrementally – vectors stay byte-identical when seeded the same way.

Cryptographic note: ElGamal re-encryption proper (Alice -> Bob during approve) is wallet-side and remains in alberta_buck.wallet.chaum_pedersen. The issuer's optional ElGamal step is a one-shot encryption to the applicant; no Chaum-Pedersen proof is required because the issuer is trusted to encrypt to the address the applicant nominated, and the applicant verifies M decrypts to m*G for the m they intended to receive.

Deliverables: issuer.py module exporting Issuer and IssuedCredential; test_issuer.py green; the wallet's __init__.py re-exports the new symbols so downstream tests can write from alberta_buck.wallet import Issuer.

Goal: replace the current Buck.sol with the identity-aware version specified in the BUCK section.

• Add IIdentityRegistry interface and constructor wiring.
• mint gates on isVerified.
• approve(spender, amount, E_bob, pi_CP) with the parameterless approve(address, uint256) reverting.
• transfer / transferFrom via _identityCheckedTransfer with bilateral checks and the BuckTransferReceipt event.
• _receiptFragments storage and _identityHash helper (keccak of bound (pk, E)).

Tests:

• Two registered users can complete the full approve -> transferFrom cycle and observe a BuckTransferReceipt whose hashes match the off-chain ciphertexts.
• Unregistered mint reverts.
• transfer to an unregistered recipient reverts.
• transfer without a prior CP-bound approve reverts when neither party is bound under a Public Identity.
• Transfers to/from a Public-Identity contract may fall back to the bound _identityHash when no per-pair receipt fragment exists; EOA<->EOA encrypted transfers MUST have a prior CP receipt.

Goal: AMM pools, vaults, and treasuries can interact with BUCK without needing to generate Chaum-Pedersen proofs.

• Confirm bindContract(target, pk, E, isPublicIdentity_=true) is invocable only against deployed contracts (target.code.length > 0) and is first-binder-wins; atomic deploy+bind is available via BuckAwareDeployer.deployAndBind / deployAndBindCreate2.
• Add a small MockAMMPool test contract whose deployer bindContract=s it as a Public-Identity contract with the operator's published =(pk, E), then participates in approve=/=transferFrom flows on both sides (taker and maker).
• Verify the receipt event uses the bound _identityHash as the public side's fragment when no per-pair CP fragment exists, and the CP-bound ciphertext on the counterparty side.

Goal: lay the structural groundwork for BUCK Notes – a commitment pool, a pluggable mint verifier interface, and the off-chain wallet helpers – behind a stub verifier so the end-to-end flow can be exercised without yet shipping the SNARK.

Shipped:

• src/Notes.sol – the contract documented in the Notes section above. The initial Phase-5 deployment used a flat commitments[] append list behind a stub verifier; the incremental Poseidon Merkle tree and 30-slot recent-roots ring buffer landed alongside Phase 7.
• src/IMintVerifier.sol / src/ISpendVerifier.sol – the narrow verifier interfaces. Decoupling Notes from the SNARK toolchain was the key Phase-5 invariant so the Phase-6 / Phase-7 verifiers land as constructor-argument swaps.
• src/StubMintVerifier.sol / src/StubSpendVerifier.sol – governance-toggleable boolean verifiers used by all Notes state-machine tests.
• alberta_buck.wallet.notes (Python) – NoteOpening dataclass, flavour constants, keccak-based placeholder commitment / nullifier helpers with domain-separating tags, id_payload_a1/a2/b1 helpers matching the expected circuit public-input layout. 13 pytest tests.
• test/Notes.t.sol – 16 tests including happy path, duplicate detection, zero-commitment rejection, empty batch, verifier disabled, external rejecting verifier, missing approval, missing balance, state-atomicity on transfer failure.

The Python wallet's note_commitment is a keccak-based placeholder; the on-chain contract stores opaque uint256 commitments without re-hashing, so swapping keccak for Poseidon is an off-chain wallet change only.

Goal: turn the stub into a cryptographically load-bearing verifier. The mint contract must refuse to append a batch unless a real Groth16 proof ties totalFace to the sum of the (flavour, value, rho, idHash, predicate) openings, and each cm[i] to Poseidon(5) of its opening.

Shipped:

• flake.nix adds circom to the dev shell and bootstraps npm dev dependencies on first entry.
• package.json pins circomlib 2.0.5, circomlibjs ^0.1.7, snarkjs 0.7.5, ethers ^6.13.4.
• circuits/mint.circom – N = 2 mint circuit (see Notes section for the signal table), with Num2Bits(128) range bounds on totalFace and each v[i]. ~3,500 R1CS constraints.
• scripts/snark/setup.sh – circom compile, 2^15 powers-of-tau (shared between mint and spend), groth16 phase-2 setup, export verification key + Solidity verifier (MintGroth16Verifier, SpendGroth16Verifier). Dev-only entropy.
• scripts/snark/prove_mint.js – witness builder (two A2 notes, v[100,25]e18=), seeded LCG randomness, snarkjs.groth16.fullProve, pB Fp2-coordinate swap, abi-encoded proofBytes, and sanity-check snarkjs.groth16.verify.
• src/MintGroth16Verifier.sol – snarkjs-generated verifier.
• src/MintVerifierAdapter.sol – MINT_BATCH_SIZE=2 adapter implementing IMintVerifier.
• test/MintVerifier.t.sol – 7 tests: happy path (real proof accepted), three tamper attacks (totalFace, cm[0], batch size) all reverting with Notes: bad mint proof, malformed proof-bytes revert at decode, adapter constructor rejects zero.

The circuit is pinned at N=2. A variable-N deployment re-templates both the circuit and the adapter's public-signals arity.

Goal: cryptographically redeem a minted commitment against an on-chain Merkle root under a fresh nullifier, paying out an equal face value of BUCK via transferCarrying so the SNARK's face === v invariant is preserved at the ERC-20 boundary.

Shipped:

• circuits/spend.circom – single-note B-shape redemption (~12,000 R1CS constraints). Public inputs [noteRoot, nullifier, face, recipient, chainId]; five constraint groups (range, commitment, Merkle inclusion at depth 20, nullifier determinism Poseidon(3)(rho, idHash, 4242), value conservation).
• circuits/spend_a.circom V2 – A-shape redemption circuit (~13,300 R1CS constraints; 6152 non-linear + 7140 linear). Public inputs [noteRoot, nullifier, face, recipient, chainId, E_n.R.x, E_n.R.y, E_n.C.x, E_n.C.y] (9 total); adds the A-tag nullifier Poseidon(3)(rho, idHash, 4243), the flavor-in-{1,2} gate, and the in-circuit Poseidon-8 binding constraint Poseidon-8(E_n.R.x, E_n.R.y, E_n.C.x, E_n.C.y, issuerData[0..3]) == idHash= (~265 R1CS) that pins the publicly-revealed E_n to the leaf at mint time.
• src/SpendGroth16Verifier.sol and src/SpendVerifierAdapter.sol – snarkjs-generated verifier and the narrow ISpendVerifier adapter for B-shape spends.
• src/SpendAGroth16Verifier.sol and src/SpendAVerifierAdapter.sol – snarkjs-generated verifier and the narrow ISpendAVerifier adapter for A-shape (V2) spends; the adapter packs the 9 public signals in order and calls the underlying verifyProof.
• src/Notes.sol extended with the Tornado-style incremental Poseidon Merkle tree (depth 20, TREE_DEPTH precomputed empty-subtree roots, 30-slot roots[] ring buffer), and three spend entry points: spend(proof, root, nullifier, face, recipient) for B-shape, spendACP(proof, root, nullifier, face, recipient, E_n, cpProof) for A-shape (which calls both spendAVerifier.verifySpendA and identityRegistry.verifySpendCP atomically), and a governance setter setIdentityRegistry guarded by the same onlyGovernance modifier as the verifier setters.
• src/PoseidonT3Bytecode.sol – a helper that deploys the 2-input Poseidon precompile from raw bytecode generated by circomlibjs; script/Deploy.s.sol deploys it and passes the address to Notes's constructor.
• src/Buck.sol extended with continuous demurrage (cumIndex, BASE_RATE_PER_SEC, per-account _indexAtLastTouch) and transferCarrying(to, amount) – a single entry point that performs a weighted-index merge on the recipient without burning a fee, so a note redemption pays the recipient face, not face - fee. (The per-account FeeTreatment enum that earlier drafts proposed has been replaced by this simpler single-function approach; the Notes pool does not need a flag because transferCarrying is the only path it calls.)
• test/SpendVerifier.t.sol and test/BuckDemurrage.t.sol cover the B-spend path: happy path, double-spend, unknown root, tampered recipient/face/nullifier, chainId mismatch, zero-recipient, and the weighted-merge invariant that the recipient's age equals the pool's average after spend.
• test/SpendAVerifier.t.sol covers the A-spend path (V2; 26 tests): happy path, double spend, A-tag-disjoint-from-B-tag, every SNARK-public-input tamper (including all four E_n coordinates), every CP-DLEQ tamper (e, s, T1, T2), unregistered/wrong-spender rejection via verifySpendCP, and governance lockdown for both setSpendAVerifier and setIdentityRegistry.

Pending (now sequenced as their own phases below):

• Phase 7-bis: in-circuit Merkle-insertion batch-mint pivot. Now done – see Phase 7-bis: Batch-Mint Pivot below.
• Phase 8: A-flavor spend (spend_a.circom V2 with in-circuit Poseidon-8 binding + off-chain CP-DLEQ via Notes.spendACP). Now done – see Phase 8: A-flavor Spend below.
• Phase 9: serialized B1 sub-notes (spend_serialized.circom + per-parent bitmap).
• Phase 10: live BuckKController deployment with AMM-pool oracles (XAU/USDC, BUCK/USDC, etc.).
• Phase 11: BUCK liquidity bootstrap + BUCK/USDC AMM pool deployment.
• Phase 12: BUCK_CREDIT insurance integration in Buck.mint (dynamic credit-limit deduction + simultaneous insurance purchase).
• Phase 13: production MPC trusted-setup ceremony.

Goal: collapse the per-leaf on-chain Poseidon ladder of Phase 7 into one SNARK-attested newRoot per batch, lifting the practical mint ceiling from N=4 (block-saturated under per-leaf inserts) to N=256-512 on L1 with stock Groth16 verifiers and an L2 ceiling of N=1024+.

Shipped:

• circuits/mint_batch.circom – parameterised batch-mint circuit; circuits/mint_batch_n{1,2,4,8,16,32}.circom are the per-N specialisations consumed by scripts/snark/setup.sh.
• src/MintBatchN{1,2,4,8,16,32}Groth16Verifier.sol – snarkjs-generated per-N verifiers, measured 14.5 KB at N=16 and 20.8 KB at N=32 (both under the EIP-170 24 KB ceiling).
• src/MintVerifierAdapter.sol – now dispatches by cms.length to mintVerifiers[cms.length], builds pub[0..4+N) = [oldRoot, newRoot, nextLeafIndex, totalFace, cm[0..N)] inline, forwards to the per-N Groth16 verifier.
• src/Notes.sol – public inputs include (oldRoot, newRoot, nextLeafIndex, totalFace); filledSubtrees, zeros[], and commitmentExists are retired (duplicate-cm migrated to economic self-enforcement via the deterministic nullifier). The 30-slot roots[] ring buffer is now updated by writing the SNARK-attested newRoot rather than the per-leaf on-chain insert.
• scripts/snark/prove_mint_batch.js – new prover script; the off-chain wallet maintains a local mirror of filledSubtrees and emits per-leaf sibling paths in submission order.
• scripts/snark/setup.sh – runs phase-2 setup per pinned N, exporting one verifier Solidity file per pinned N.
• test/MintVerifier.t.sol – 43 tests: full N=1..16 ladder (happy path, four tamper paths totalFace / newRoot / cm[] / wrong-N, replay-after-mint, two-batch successive insertion) plus the N=32 happy path, cross-N successive (N=16 -> N=32), cross-N replay (N=4 proof rejected after live state advances), per-N dispatch coverage, and a partial-batch case (5 live + 11 v=0 dummy leaves at N=16) confirming dummies advance nextLeafIndex by N without inflating totalFace.

Cost: full forge measurements across the pinned ladder – N=1: 461K, N=2: 473K, N=4: 500K, N=8: 562K, N=16: 624K, N=32: 1.12M. Per-note cost amortizes from 461K at N=1 (the constant ~216K Groth16 verifier dominates) to 39K at N=16 to 35K at N=32, approaching the ~31K asymptote implied by the per-leaf calldata + R1CS slope. Spend cost is unchanged at ~360K (independent of mint batch size).

Stop conditions for promoting to N >= 64:

• EIP-170 24 KB verifier-bytecode ceiling. N=64 lands at ~33 KB, breaching the limit. The three escape hatches (calldata-IC hash-pinned, sharded SSTORE2, plain SLOAD) are documented in alberta-buck-notes-rollup-mint.org; calldata-IC is the natural fit for the Holochain wallet.
• Block-share economics. At N=512 a single mint occupies ~half a 30M-gas block; at N=1024 it cannot land on L1 at all. L2 deployment (Arbitrum/Base/Optimism, ~100x looser block budgets) lifts this; recursion (Nova/Halo2/Plonky3) is the eventual fix above N=512.

Goal: ship the missing half of the spend surface – private redemption of A1/A2 notes that carry an identity binding – with the corrected key-pair-binding semantics surfaced by the 2026-04 Deepseek R4 review. Both V1 and V2 are now in tree, exercised end-to-end by 26 forge tests in test/SpendAVerifier.t.sol.

Corrected design invariant (per alberta-buck-proofs.org Theorem 10.1):

• The A-spend identity binding requires a single sk_dep witness that simultaneously satisfies pk_dep_current == sk_dep * G= (the spender's registered public key) and produces matching decryptions of both the note ciphertext E_n and the registered ciphertext E_reg. The Chaum-Pedersen DLEQ enforces C_n - sk_dep * R_n === C_reg - sk_dep * R_reg – if the recipient lost sk_rec and re-registered under a new ElGamal key, no single sk_dep satisfies both constraints.
• Consequence: A-note loss-recovery via identity re-issuance is impossible by design. sk_rec must be backed up like a hardware-wallet seed; loss is terminal. The companion documents (alberta-buck-notes.org, alberta-buck-notes-flow.org) were revised in the same cycle to remove the now-incorrect "transparent re-issuance" framing.

Phase 8 ships in two layers, both in tree:

Goal: amortize bearer-note issuance by anchoring N pseudorandom serials s_i under one cm_parent leaf and spending each against a shared per-parent nullifier bitmap. The mint circuit is unchanged – cm_parent is an ordinary Poseidon-5 output – so this phase is spend-side-only on circuits and storage. Per-bearer-note marginal mint cost drops to ~31K/N_fam at N_batch=16, vs ~31K at the Phase 7-bis baseline.

Per alberta-buck-notes-serialized.org migration plan (Phases A-D):

Phase 9-A: Spend-serialized circuit:

• circuits/spend_serialized.circom – extend single-note spend with (subRoot, i, s_i, path_i_in_subRoot) sub-block; constraint groups are the single-note spend's plus a depth-K Poseidon-2 sub-tree walk. Constraint count ~25K at K=10 (N_fam=1024), within stock 24 KB verifier.
• scripts/snark/setup.sh phase-2 setup (re-uses the existing pot17-pot19 ptau).
• src/SpendSerializedGroth16Verifier.sol + adapter route in SpendVerifierAdapter.

Phase 9-B: Contract support:

• Notes.sol adds spendSerialized(proof, root, cm_parent, i, face, recipient) alongside the existing spend() and the Phase 8 spendACP().
• New storage mapping(uint256 => uint256[]) bitmap (parent > packed bitmap), allocated on first write per parent; 256 bits per =uint256 word.
• nullifiers mapping unchanged for single-note and A-flavor flows.

Phase 9-C: Wallet support:

• Mint path: add "serialize with N" option that builds K_fam, subRoot, predicate_fam, destroys K_fam after deriving the per-recipient payloads.
• Payload schema v2: extend the bearer-note blob format to include (i, s_i, path_i_in_subRoot, subRoot) when the note is serialized.
• Spend path: detect payload variant from schema version; route to the appropriate verifier.
• Wallet UX requirement: K_fam destruction is the operational trust assumption. The wallet must present this prominently to the issuer and SHOULD attest destruction via HSM if available.

Phase 9-D: Measure + promote:

• Measure spend-serialized gas at N_fam in {16, 256, 1024}. Target: spend-tx ~390-410K (single-note baseline + log_2(N_fam) sub-tree levels at ~4K each).
• Confirm verifier bytecode size; confirm no EIP-170 breach.
• Document family-linkage disclosure prominently in wallet UX.

Stop condition: any test that demonstrates a sibling sub-note spendable without the recipient's (i, s_i, path) triple, or a bitmap[cm_parent] bit settable by anything other than Notes.spendSerialized with a valid Groth16 proof.

Goal: replace BuckKControllerStatic in the Buck constructor with the live BuckKController reading commodity-basket prices and the BUCK/USDC TWAP from on-chain sources. The controller is in-tree with mock-feed unit tests; the remaining work is wiring real oracle addresses, picking gains, and validating against historical price paths on a forked-mainnet harness.

Oracle source: AMM pools, not Chainlink (interim):

The architecture document targets Chainlink commodity feeds; the interim Phase 10 deployment substitutes Uniswap V3 TWAP reads on USDC-quoted pools for each basket component. Rationale: Chainlink commodity feeds (XAU/USD, AGRI baskets, etc.) are limited in coverage and add an external trust dependency before BUCK has a price discovery surface of its own. AMM-pool oracles – with sufficient TWAP windows and pool depth – are self-sovereign and deployable on any chain without an off-chain oracle integration step.

Initial basket components (illustrative; final composition is governance-set):

Process variable: Uniswap V3 BUCK/USDC TWAP (Phase 11 dependency – pool must exist).

Deliverables:

• src/BuckKController.sol – already in-tree with PID structure; complete the _getBasketCost() and _getBuckPrice() AMM-pool TWAP plumbing. Use OracleLibrary.consult(pool, twapInterval) for tick-cumulative deltas; per-pool decimal normalisation helper.
• script/Deploy.s.sol – swap BuckKControllerStatic -> BuckKController, wire the basket-pool addresses + weights, set initial gains (Kp/Ki/Kd), set dT and twapInterval.
• test/BuckKController.t.sol – mocked-pool unit tests (already passing); add fork-test (gated on RPC) that runs the controller against a few thousand blocks of historical price paths and asserts BUCK_K trajectories within a reasonable corridor.
• Governance migration runbook: how to flip Buck's controller pointer atomically.

Stop condition: a fork-test that drives BUCK_K outside the [buckKMin, buckKMax] band on realistic historical input would indicate gain mistuning or anti-windup logic bug – halt before mainnet promotion.

Goal: deploy the BUCK/USDC Uniswap V3 pool that Phase 10 reads as its process variable, seed initial liquidity, and validate the closed loop BUCK price -> BUCK_K -> credit limits -> BUCK supply -> BUCK price. Without this pool the live controller has no signal.

Deliverables:

• Treasury minting path: a one-time governance authorisation to mint a seed quantity of BUCK against a treasury-owned BUCK_CREDIT (the seed is collateralised by the same insurance-NFT mechanism every other mint uses; no special path).
• Pool deployment: deploy UniswapV3Pool BUCK/USDC at an initial fee tier (0.30% suggested for sub-Jubilee bootstrap). Add the BUCK/USDC pool address to BuckKController in the same governance batch as the Phase 10 controller swap.
• Liquidity bootstrap: provide initial single-sided liquidity (USDC + the treasury-minted BUCK) at a price band tied to the initial BUCK_K target. Documented in script/BootstrapLiquidity.s.sol.
• Ongoing test harness: test/AMMPool.t.sol – fork-test that walks several mint -> AMM-swap -> spend -> AMM-swap cycles and asserts that the BUCK_K controller responds with the expected sign and magnitude.
• Loop validation: run a multi-day testnet rehearsal with synthetic transaction flow before the controller takes mainnet inputs.

Stop condition: BUCK_K oscillating with growing amplitude under realistic flow indicates gains too aggressive (Phase 10 tuning) or an oracle-update cadence too slow (dT too high) – both are halt conditions.

Goal: close the loop the architecture document describes – the BUCK_CREDIT NFT is the insurance-backed collateral that bounds BUCK issuance; Buck.mint() deduces an instantaneous credit limit from the holder's deposited NFTs and simultaneously pays the default-insurance premium into the InsurancePool. Most of the mechanics already exist (current Buck.mint() reads buckCredit.totalCurrentValue(sender) and pays _computePremium() to the pool); this phase is integration polish, insurer onboarding, and Jubilee fund hookup.

Deliverables:

• InsurancePool contract (src/InsurancePool.sol) – ERC-4626 vault that accumulates default-insurance premiums and pays out on documented default events. Pool shares are mutual-insurance equity; depositors absorb claim losses pro-rata. Governance-controlled claim-payout authority for Phase 12; on-chain claim adjudication is a follow-up phase.
• Default detection: a periodic (or manually triggerable) view that walks accounts whose balanceOf(sender) > storedLimit * BUCK_K – those are in default and need either burn() (voluntary), forced liquidation of activated BUCK_CREDIT, or an InsurancePool payout. Off-chain monitoring tooling reads the events; on-chain enforcement is governance in Phase 12 and automated in a follow-up.
• BUCK_CREDIT insurer onboarding script (script/OnboardInsurer.s.sol) – the mechanical steps to register an insurer, mint a representative BUCK_CREDIT, and validate the full BUCK_CREDIT.mint -> client.activate -> Buck.mint -> InsurancePool.deposit flow.
• Jubilee fund hookup – the BUCK demurrage accrual already feeds a single sink whose _indexAtLastTouch is weighted-merged on disbursement; Phase 12 routes this sink to a governance-controlled JubileeFund contract that periodically distributes accumulated fees to defaulted accounts (or burns them, governance choice).
• End-to-end mint walkthrough test (test/MintWalkthrough.t.sol) that drives the full Step 0-4 sequence from Integration: Full mint() and transfer() Walkthrough above against a forked-mainnet harness with real AMM-pool oracles (Phase 10 + 11) and a representative BUCK_CREDIT.

Stop condition: any path that allows minting BUCK above the credit limit (modulo the documented strict-monotonic storedLimit ratchet and the BUCK_K reduction default window) is a hard halt. The credit-limit guarantee is the system's solvency invariant.

Goal: replace the dev-only entropy in scripts/snark/setup.sh with a production multi-party ceremony for every shipped circuit: mint_batch_n{1,2,4,8,16,32} (Phase 7-bis), spend (Phase 7), spend_a (Phase 8), spend_serialized (Phase 9). Each circuit's zkey is circuit-specific; the underlying ptau is universal up to the chosen power and can be inherited from a community ceremony (e.g., Perpetual Powers of Tau).

Deliverables:

• Ceremony plan: contributor recruitment, attestation ledger, public-coordination thread, per-circuit zkey contribution sequence, archival storage for transcripts.
• Import community ptau: pull pot15-pot25 from Perpetual Powers of Tau (or equivalent), verify provenance against the published attestations, mirror to project-controlled storage.
• Per-circuit phase-2 ceremony: at least 5 independent contributors per circuit, with the final zkey verifiable by any third party against the contribution log.
• Verifier re-deployment: regenerate MintBatchN*Groth16Verifier.sol and the spend verifiers from the production zkey; deploy via governance in a single batched transaction (atomic across all circuits to avoid mixed-trust state).
• Public attestation: publish ceremony transcripts and verification instructions alongside the deployed contract addresses.

Stop condition: any contributor unable to demonstrate independent entropy generation (e.g., re-using a colleague's machine, no hardware-RNG attestation) reduces the trust assumption below the "1-of-N honest" threshold. Halt and re-do that contribution before final zkey publication.

The phases are strict prerequisites of one another: Phase n+1 does not begin until Phase n has a passing CI run and a Foundry gas snapshot. Implementation STOP conditions:

• Phase 1: a Solidity checkChaumPedersen disagreement with the Python reference vectors. Disagreement implies a bug in the spec or in one of the implementations – resolve before any contract that depends on it ships.
• Phase 2-A: an Issuer.issue(...) path that produces a credential whose sigma the wallet's rerandomize_for_registration cannot turn into a sigma' accepted by registration_verify under the issuer's PS public key. The issuance -> registration handoff is the contract this phase establishes; any drift here propagates into every later identity-bound test.
• Phase 3: BuckTransferReceipt hash collisions across distinct ciphertexts (would indicate an ABI-encoding bug – canonicalisation matters).
• Phase 5: any Solidity-side type that does not match the chosen SNARK verifier output (revisit the toolchain choice; do not paper over with adapter contracts).
• Phase 6: a tamper-path test that fails to revert. The adapter + Groth16 verifier must reject every documented attack on totalFace, cm[i], batch size, and malformed proof bytes; any false-accept is a hard stop before further Notes work.
• Phase 7: any inconsistency between the mint-circuit commitment layout and the spend circuit's opening layout (would fork the two proof systems' views of a note, silently). Both circuits are pinned at Poseidon(5)(flavor, v, rho, idHash, predicate) with Num2Bits(128) range bounds on every v[i], totalFace, and face; the value-conservation constraint sum(v[i]) === totalFace now holds in the integers (62-bit margin against field overflow at N < 2^64=). Any future change to either circuit's commitment layout must be made simultaneously in both.
• Phase 7-bis: an oldRoot / newRoot chain break. The contract guard oldRoot = roots[currentRootIndex]= and the SNARK derivation of newRoot are the two halves of the chain; either side admitting a fabricated newRoot silently forks the tree. Any per-N adapter dispatching to the wrong verifier (cms.length=N mismatching mintVerifiers[N]) is the same class of failure.
• Phase 8: any A-spend test that completes after sk_rec loss + identity re-issuance. The single-sk_dep witness invariant is the cryptographic substance of the phase; if a compiled circuit accepts unequal pk_rec_mint and pk_dep_current the constraint set is broken.
• Phase 9: a bitmap[cm_parent] bit settable by anything other than Notes.spendSerialized with a valid Groth16 proof, OR a sibling sub-note spendable without the recipient's (i, s_i, path) triple. Either is a forge-a-note-I-don't-own admission and a hard halt.
• Phase 10: BUCK_K trajectory outside [buckKMin, buckKMax] on a fork-test driven by realistic historical price paths. Indicates gain mistuning or anti-windup logic bug; halt before mainnet promotion.
• Phase 11: BUCK_K oscillating with growing amplitude under realistic flow. Indicates gains too aggressive (Phase 10) or oracle-update cadence too slow (dT too high). Either is a halt condition.
• Phase 12: any path that mints BUCK above the credit limit (modulo the documented strict-monotonic storedLimit ratchet and the BUCK_K reduction default window). The credit-limit guarantee is the system's solvency invariant.
• Phase 13: any contributor unable to demonstrate independent entropy generation reduces the trust assumption below "1-of-N honest"; halt and re-do that contribution before final zkey publication.
